I have a JWR-001-02 vibration sensor and need a module to connect it to a PicoLog board for use with PicoLog. Which module would you recommend I purchase?
Original message (Serbian)
Posedujem senzor vibracija JWR-001-02 i potreban mi je jedan od Vaših modula za povezivanje senzora sa PicoLog [address removed] Board PTH/SMD, kao prilagođenje za PicoLog [address removed].
Koji modul mi preporučujete da nabavim?
Unapred hvala na odgovoru.
Originally submitted via email support on 27 February 2025. Migrated to the forum for community visibility.

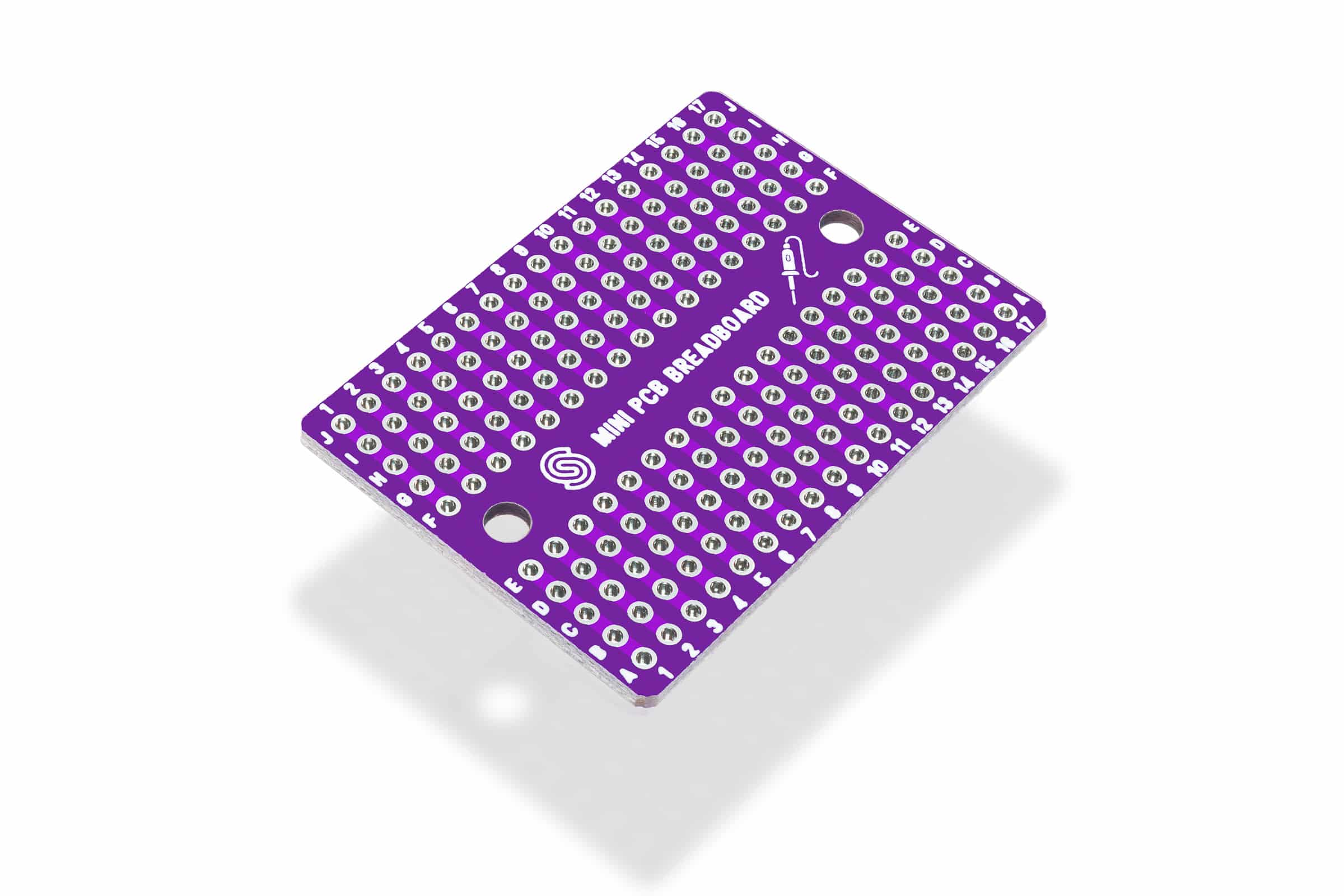

I looked into that sensor and board, but I’m not certain which of our modules would be suitable for this connection. From what I can see, the sensor could be soldered to a PCB and then connected via wires to the PicoLog terminals:
If I’ve missed something or if you’d like me to review additional technical details about these products, let me know and I can check our assortment again.
Original message (Serbian)
hvala na upitu, proguglao sam taj senzor i pločicu, nisam siguran na koji od naših modula mislite da bi mogao pristajati spajanju ovoga. Koliko vidim, taj senzor bi se mogao zalemiti na PCB i onda žičicama dovesti do terminala za PicoLog:
Ako sam nešto propustio ili želite da pogledam neke dodatne tehničke detalje vezane uz te proizvode, možete mi reći pa mogu opet pregledati naš asortiman.
Let me clarify further. The JWR-001-02 vibration sensor (datasheet attached) needs to be connected via wires to a PicoLog board (PP545) with PTH/SMD connection, which connects directly to PicoLog1012 (PP543) via a 25-way D Type female port (pin-compatible with USB ADC-11). The PicoLog1012 (PP543) then connects to a PC via USB 2.0 full speed. My question is: do you have an adapter module (with maximum 5 VDC supply, resistor, etc.) that would fit between the JWR-001-02 sensor and the Small Terminal Board PP545? Or do you have any advice or instructions on how to make this adapter most elegantly? Please let me know if anything is unclear.
Original message (Serbian)
Poštovani, Pre svega hvala Vam puno na odgovoru. Pokušaću ponovo da pojasnim. Senzor “vibracija JWR-001-02”, (datasheet u prilogu email-a), je potrebno povezati žicama, (kako ste naveli), sa: “PicoLog [address removed] Board PTH/SMD, (PP545)”, koja se direktno povezuje sa PicoLog1012, (PP543), preko porta “25-way D Type, female (pin-compatible with USB ADC-11)”, (datasheet u prilogu email-a), (Multichannel Data Acquisition (DAQ)), a PicoLog1012, (PP543), se povezuje preko USB 2.0 full speed sa PC-em. Pitanje je, da li imate modul koji bi bio prilagođenje (max. napajanje-5 VDC, otpornik, itd.), između senzora JWR-001-02 i Small Terminal Board-a PP545 ili bar neki savet ili instrukcije kako dato prilagođenje uradnim najelegantnije? Unapred hvala na odgovoru! Ukoliko ima bilo šta nejasno ili sporno u vezi sa navedenim molim Vas da me kontaktirate. Srdačan pozdrav. [name removed] Mob. From: [name removed] ([name removed]) [mailto:
Attachment omitted in migration: Pico-PICOLOG_1012-datasheet.pdf
Attachment omitted in migration: image001.jpg
Attachment omitted in migration: datasheet-185232-vibration-sensor-185232-185232.pdf
We don’t have a ready-made module for this. It looks like you’ll need to use a voltage divider to convert the input voltage to the expected level:
Good luck with your project!
Original message (Serbian)
nema na čemu na odgovoru, isprike što je trebalo par dana da se vratim na ovo.
Ukratko, nemamo takav gotov modul, čini mi se kako bi trebali koristiti voltage divider kako bi se ulazni napon preradio na očekivanu razinu: Voltage Dividers - SparkFun Learn
