Pomodoro Timer Solder Kit – schematic request

TECHNICAL SUPPORT Soldered Kits
1

Hello Soldered Support,

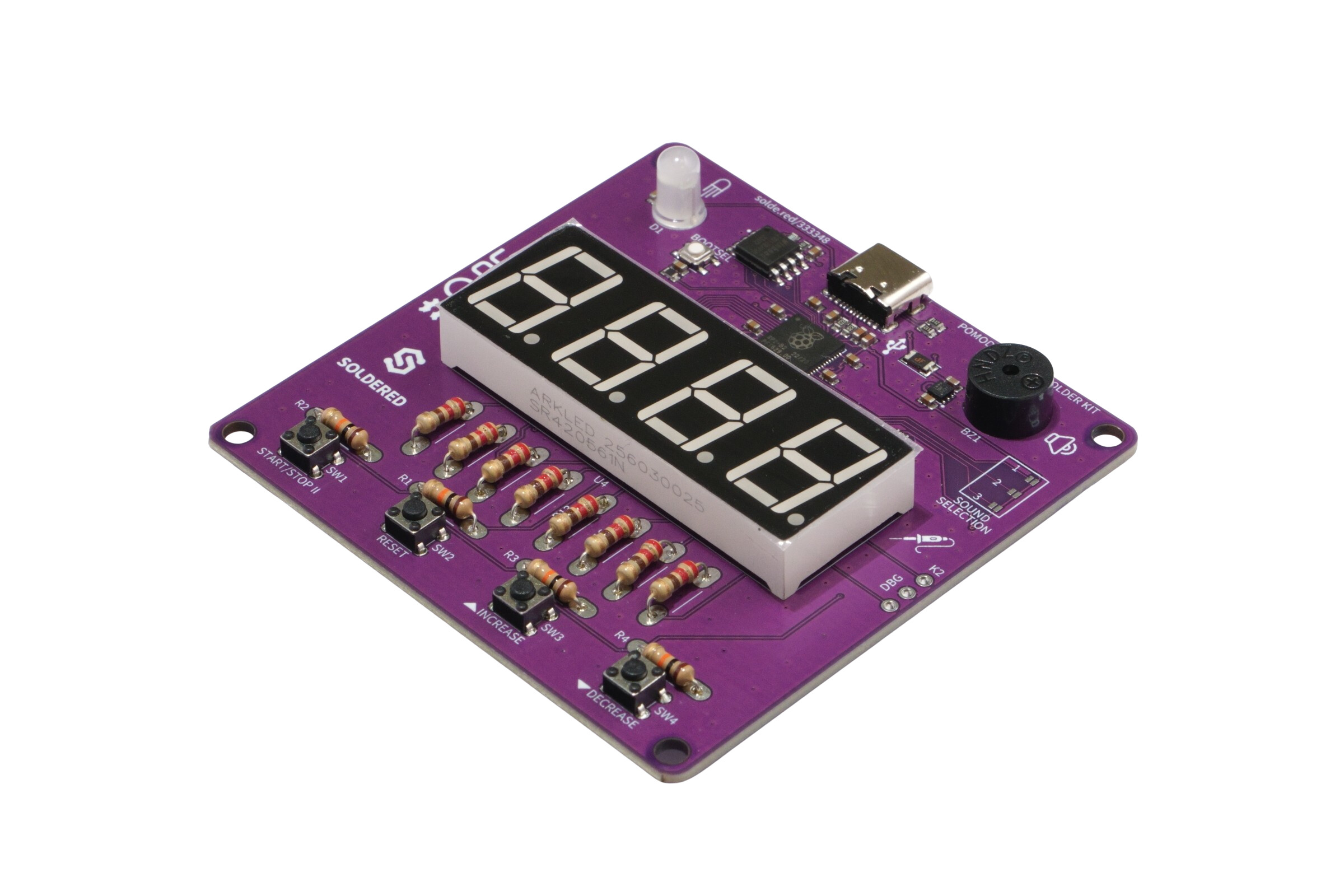

I recently purchased your Pomodoro Timer Solder Kit:

On the product page, you state:

“Fully Open Source: All design files, including schematics, KiCad layouts, and 3D-printable case models, are available for modification.”

However, I have not been able to find the schematic anywhere. I checked both the product page and your GitHub repositories, but I could not locate it.

Could you please send me the PDF schematic for the Pomodoro Timer Solder Kit, or point me to where the complete KiCad project/design files are available?

You also advertise “24/7 lifetime customer and technical support”, so I thought this would be a good opportunity to put it to the test. :slight_smile:

Thank you!

Best regards,
Stefan

2

Pomodoro Timer Solder Kit Schematic.pdf (443.1 KB)

Here you go.
