Schematics for NULA MAX RP2350 and NULA Mini ESP32-C6

TECHNICAL SUPPORT NULA Development Boards
1

Hello,

I have purchased several products from Soldered and I am very happy with them.

However, I noticed that I cannot find the schematics for some of the boards I bought, specifically:

NULA MAX RP2350

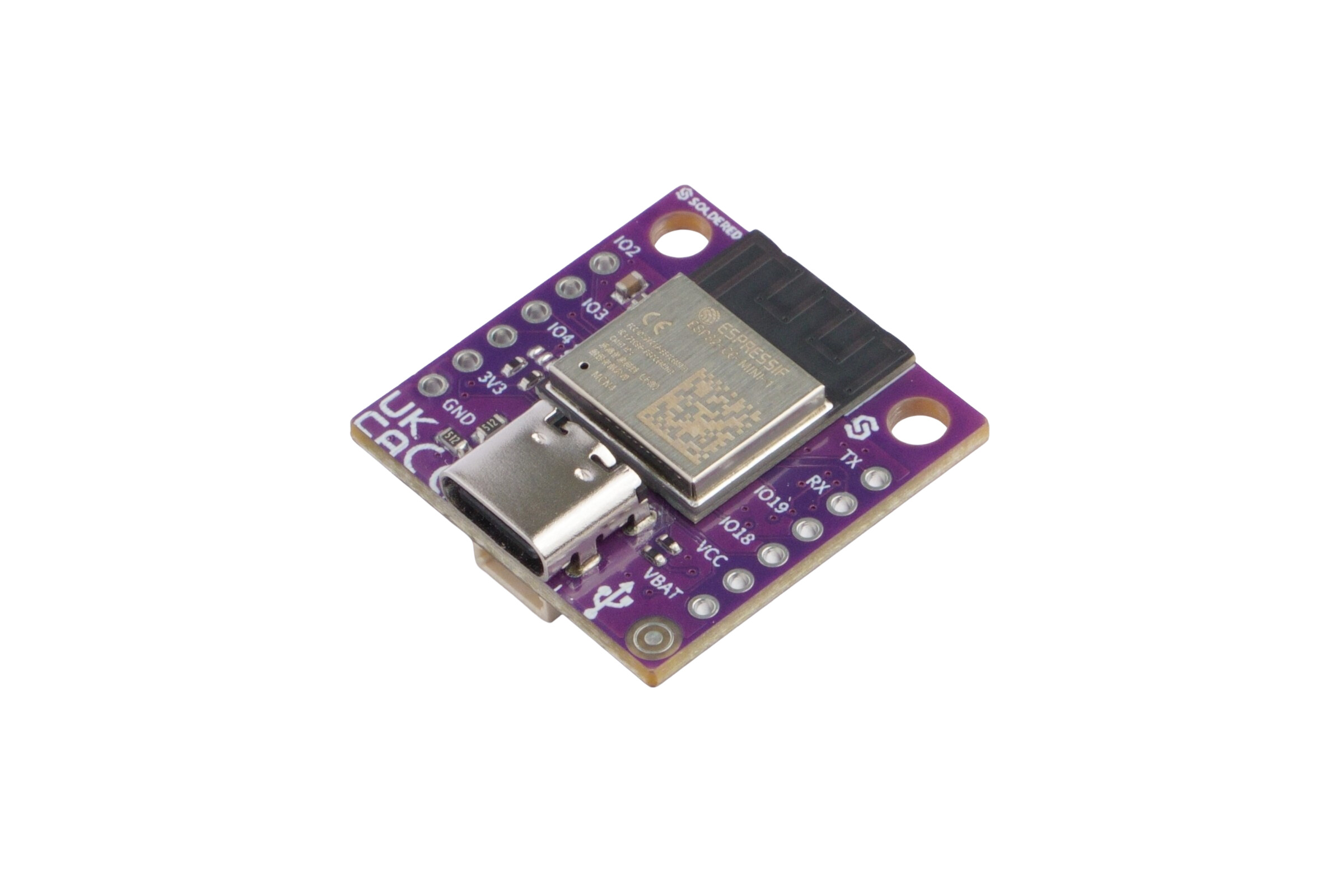

NULA Mini ESP32-C6

Could you please send me the schematics for these two boards?

I would also like to ask why the schematics are not published by default on the corresponding GitHub repositories. Since these are development boards, having the schematic available is very useful for understanding the hardware, GPIO connections, power circuitry, peripherals, and for developing custom projects around the boards.

For some Soldered products, hardware design files are available publicly, so I was expecting to find the schematics for the NULA boards there as well.

Thank you very much for your help.

2

Hi @stefan_vanya

You can find the schematics attached below

Soldered NULA RP2350 Schematic.pdf (758.5 KB)

Soldered NULA Mini ESP32-C6 Schematic.pdf (368.1 KB)

We are working on a system to automatically publish the hardware files to Git so they will be available there soon.
